Series 346

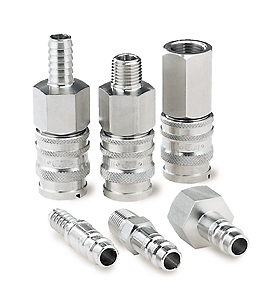

The AISI 316 stainless steel construction of Series 346 makes it suitable for agressive applications, such as offshore duty. Its special valve design provides a high rate of airflow. Like most CEJN breathing air couplings, Series 346 offers one-hand operated connection, an integrated safety feature that guards against unintentional disconnection, a grip-friendly locking sleeve, and a broad range of connections.

Technical data
正常通径: 7.0 毫米 (9/32")
气流量: 800 升/分钟 (28.2 CFM)
最大工作压力: 35 巴 (510 PSI)
最小爆破压力: 140 巴 (2030 PSI)
温度范围: -30ºC — +100ºC (-22ºF — +212ºF)
母接头材质: Stainless steel, AISI 303
公接头材质: Stainless steel, AISI 303
密封材料: NBR

Flow capacity is measured at 6 bar (87 PSI) inlet pressure, and pressure drop at 0.5 bar (7 PSI).

Air Flow

Pressure drop bar (PSI)

Flow l/min. (CFM)
Couplings 产品编号 连接 长度 直径 扳手尺寸
Male thread 103461254G 3/8"59.925.422
 1034614521/4" NPT63.925.422
Female thread 103461202G 1/4"61.925.422
 1034614021/4" NPT60.425.422


Nipples 产品编号 连接 长度 直径 扳手尺寸
Hose connection 1034650059.0 mm5414-
Male thread 103465272G 1/4"4016.214
 1034654521/4" NPT42.516.214
Female thread 103465202G 1/4"41.519.617
 1034654021/4" NPT40.519.617
 1034654043/8" NPT4225.422


Other connections available on request. Thread connections are listed according to ISO Standards. All measurements are in mm. Check with an authorized CEJN distributor for availability and prices.
